DH5000 Series / Grade 2 / Rim Exit Device
- UL listed Panic Hardware
- Narrow Stile Design
Suited For
- Glass door
- Aluminum entrance doors
- Passage doors
- Full glass doors in stores, resorts and hotels
Application
- For use on single doors or double doors withmullion (Fire rated device up to 4’x8′ single or 8’x8′ double fire labeled doors.
- Fits for 1 3/4″ (44mm) thick standard non-handedor hollow metal or wood doors, other than standard 1 3/4″ is available, specify door thickness.
- Minimum Stile width : 2 1/2″ (63mm)
![]() |
DH531 Strike Shim Furnished with 532 Strike together made if steel and is plated. This shim is 1/8″ thick and is used to prepare doors with a 1/2″ stop. This will correct the distance between the device latch and the surface. If the frame has a 5/8″ stop a shim is not needed. |
![]() |
DH532 Panic Rim Strike Surface applied standard on 5000 Series panic rim exit devices. Stainless Steel with a plated roller. |

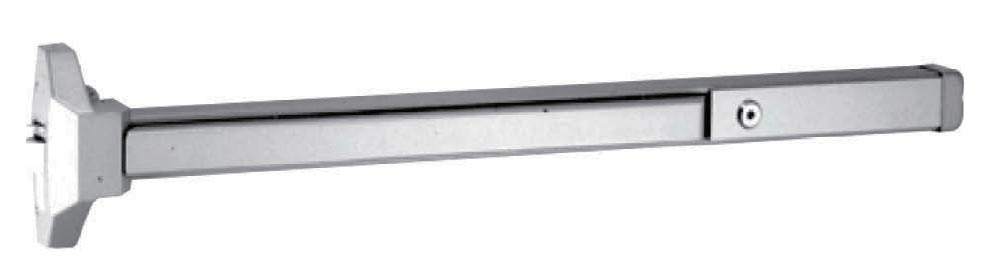

DH5610S Panic-Rated RIM / Narrow Design Exit Device
Specifications
Device Head Cover | Stainless Steel, nonferrous alloy |
Chassis | Steel plated |
Mechanism Housing | Steel or Stainless Steel |
Push Bar | Steel or Stainless Steel |
End Cap | Steel or Stainless Steel |
Latch Bolt | 100% Stainless Steel, dead locking type with an 11/16″ throw |
Deadlocking Latch | 100% Stainless Steel with 5/8″(16mm) throw |
Strikes | DH531 & DH532 Rim (panic rated) DH533 Rim (fire rated) |
Handing | Non-handed |
Mounting Fasteners | Machine screws furnished standard Sex Nut & Bolt (SNB) are required for wood doors. Order SNB separately including standard. |
Dogging* | Hex key dogging standard (Allen-type key furnished) |
Dogging Options | Cylinder dogging or less dogging |
Finish | 605, 630, 689, 690, four finishes |
Dimension | See Spec. Sheet |
Device Length | See Spec. Sheet |
UL Listed | For Panic Hardware, see model DH500SA. For Fire Exit Hardware, see model DH510AF |
*Fire rated SVR device has no mechanical dogging. (Dogging device is not permitted on fire-rated exit device)
