9100 Series Grade 1 / Concealed Vertical Rod Panic

FEATURES:

  • Grade 1 Concealed Vertical Rod Panic
  • Underwriter’s Laboratories Inc. Listed Panic Hardware
  • For use with narrow, medium and wide stile Aluminum doors
  • Non-handed, Field Reversible for LHRB or RHRB doors
  • Outside Unlatching and Dogging by Cylinder Key or Dogging by Hex Key in TouchBar
  • Top Steel Toggle Latch and Bottom Steel Rod Latch Bolt
  • Units use Standard Mortise Cylinder with MS Type Cam and M P—6182 Cylinder Mounting Pad
  • Standard Units for 36″and 48″door widths (cut bar to fit) and up to 84″ in height
  • Can be used on 30″ wide doors
 PH-6000
Outside Pull Handle

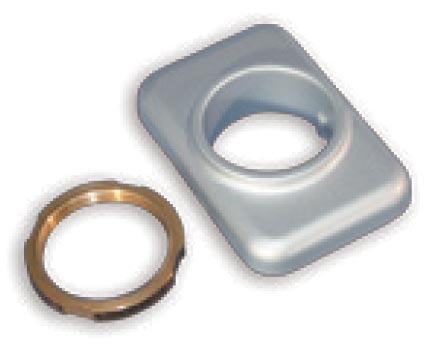

MP-6182
Cylinder Mounting Pad
with Locking Ring
MP-6000
Pull Handle Mounting
Plate for Metal Doors

Finshes:

  • AL – ALUMINUM- Anodized extruded Aluminum with Baked Aluminum Painted Cover Caps
  • DU- STOREFRONT BRONZE- Bronze Anodized extruded Aluminum with Baked Storefront Bronze Painted Cover Caps
  • WARRANTY: Refer to inside front cover
  • US AND FOREIGN PATENTS

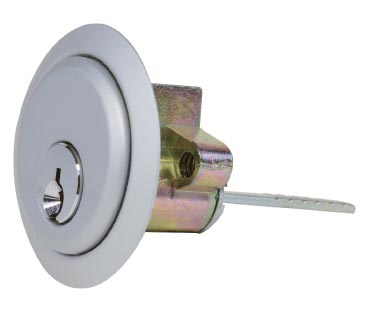

 CZ-1001
Specify: Cylinder ring type KA-2 or KA

  • 1″ Length 5 pin Cylinder 1-5/32″ diamete
  • AR MS- ype cam
  • Keyway available Schlage Yale “8”
  • Core face and Key US 26
  • Cylinder ring 3/16″ standard, 5/32″ and 7/32″ optiona
  • Finishes vailable: Specify: Keyway
    AL – Anodized Satin Aluminum
    BK – Anodized Black
    DU – Anodized Bronze
