Grade 2 Heavy Duty Thumbturn Deadbolts

DH77320 Series / ANSI Grade 1 / Thumbturn

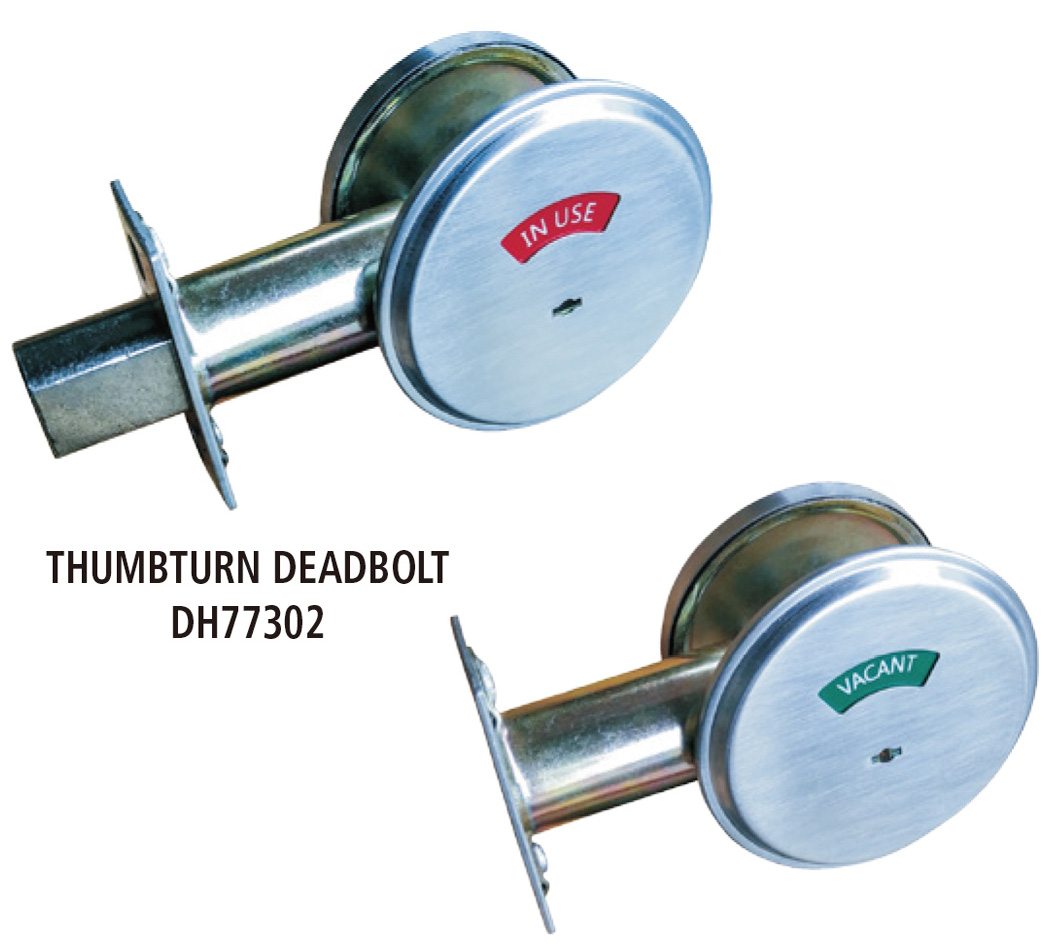

A Heavy Duty commercial quality deadbolt that provides a positive deterrent to forced entry with vacancy indicator.

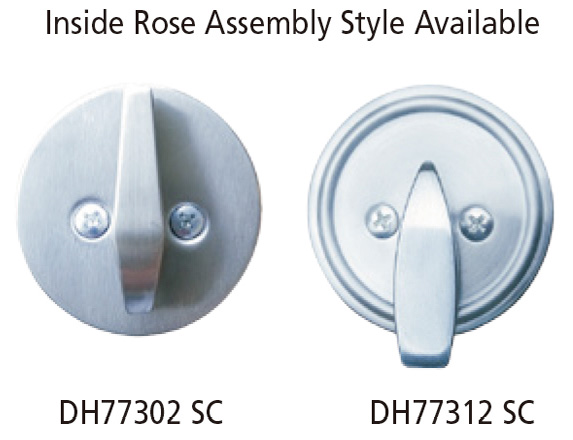

  • 1" (25mm) deadbolt with hardened steel core exceeds ANSI Grade 1 Security against kick-in and saw attacks. ADA Ergonomic thumb turn.
  • ADA Ergonomic thumb turn.

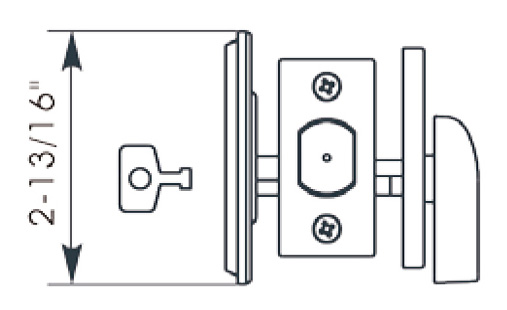

  • 2-13/16" dia SUS304 rose
  • 2mm thick steel mounting plate.
  • Sturdy, all steel latch case and mechanism.
  • "VACANT" in its window with lat chbolt retracted

Finishes Available:

  • PB – Polished Brass
  • AB – Antique Brass
  • SN – Satin Nickel
  • SC – Satin Chrome
  • CR – Polished Chrome
  • ORB – Oil Rubbed Bronze
  • PVD – Lifetime finish

Door Prep: Cross bore 2-1/8″, Edge bore 1″ Latch face 1″x 2-1/4″ .
Backset: 2-3/4″ standard, 2-3/8″ optional.
Door Thickness: Adjustable 1-3/8″ — 2″.
Face Plates 1-1/8″ x2-1/4″ square corner sta ndard. R ound corner and other options available.
Strikes: 1-1/8″x2-3/4″ square corner sta ndard. R ound corner and other options available.
Bolt: 1″ throw. Nickel plated.
