Cylindrical Locks

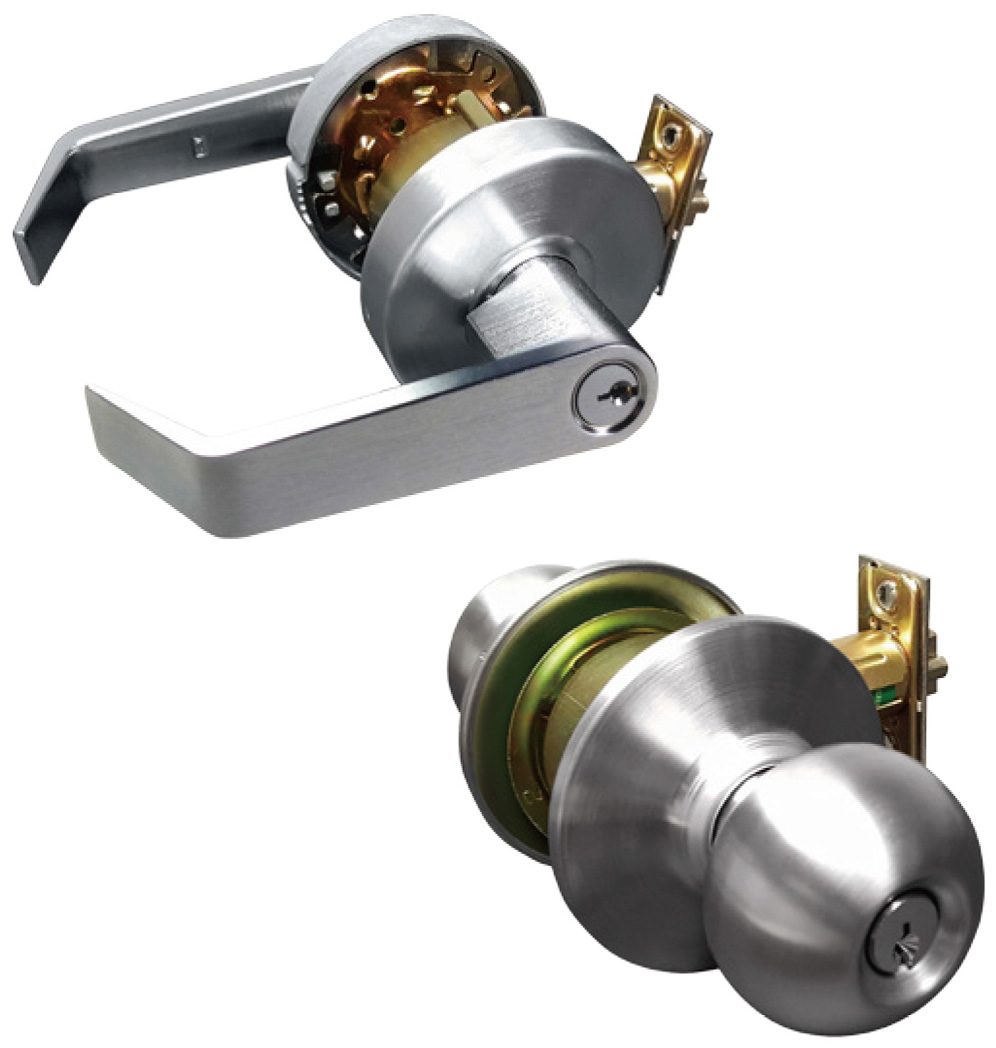

30DH Series | Grade 2 / Non-Clutched Lockset
30DH locksets meet ADA requirments. The 30DHL and 30DHK medium duty key-in locksets are designed to exceed the ANSI/ BHMA A156.2 Grade 2 requirments.
- Non-clutched mechanism
- 30DHL (Lever)
- 30DHK (Knob)
- Heavy duty lever spring return rose assembly
- Bidirectional lever operation, non-handed
- Solid brass latch bolt
- Solid brass Schlage C pin keyway cylinder
- Meets Fire Code (California State Reference Code)
- UL and CUL Listed
- Five year warranty
Specifications
| Application | For offices, schools, hospitals, apartments, hotels, motels and other public buildings |
| For Doors | 1⅜” to 1¾” (35mm to 45mm) |
| Backset | 2⅜ (60mm) or 2¾ (70mm) standard |
| Front | Brass, Bronze: 2¼” X 1″ standard. 2¼ X 1⅛ optional. Adjustable for Flat or Beveled doors ⅛” in 2″ |
| Strike | ST1 ANSI 1¼” x 4⅞” (Standard) |
| Roses | Brass or Bronze |
| Hand | Universal, non-handed |
| Latch bolt | Brass. 1½” Latch bolt standard . Stainless steel, 1½”Latch bolt optional |
| Keys | Two Brass |
| Cylinder | Brass Schlage C pin keyway standard Weiser. Arrow. Lockwood C 4. Kwikset optional |
| Masterkeying | |
| Non-clutched | Non-clutched mechanism, free Wheeling not available. |
| Interchangeable Core | Interchangeable core will accept compatible 6 or 7 pin cores with BEST or SARGENT |
| Finishes (US Code) | 3, 4, 5A, 10, 10B, 11, 15, 1SA, 19, 26, 26D |
| Split Finishes | Outside finish specified first. Front & Strike finished to match inside trim unless otherwise specified |
| UUCUL | Listed for use on fire doors (3 Hour Rated) |
