DH5510S Panic-Rated RIM wide stile design exit device
DH5510F Fire-Rated RIM wide stile design exit device

  • UL listed Panic Hardware or Fire Exit Hardware
  • Wide Stile Design & Flush Doors Use

Suited For:

  • Any panic or fire rated interior single door and all exit doors h factories, hospitals, apartments, office buildings
  • Indoor parking lots

DH5000 Series Grade 2 Rim Exit Device



Application

  • For use on single or double doors with mullion (Fire rated device must use on 4′ x 8′ single or up to an 8′ x 8′ double fire labeled doors).
  • Fits for 1 3/4″ (44mm) thick standard RHR or LHR hollow metal doors &wood doors Other than
    standard an 1 3/4″ is available but specify door thickness when ordering.
  • Minimum Stile width: 3 1/2″ (90mm)
DH531 Strike Shim
Furnished with DH532 Strike together made if steel and is plated. This shim is 1/8″ thick and is used to prepare doors with a 1/2″ stop. This will correct the distance between the device latch and the surface. If the frame has a 5/8″ stop a shim is not needed.

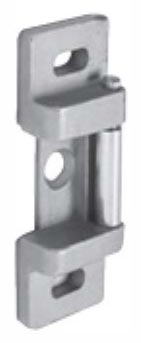

DH532 Panic Rim Strike
Surface applied standard on DHSOOO Series panic rim exit devices. Stainless Steel with a plated roller.
DH533 Fire Rim Strike
Surface applied. Standard on DHSOOO Series fire rim devices. It is 100% stainless steel including a roller.

Specifications

Device Head Cover Stainless Steel, nonferrous alloy
Chassis Steel plated
Mechanism Housing Steel or Stainless Steel
Push Bar Steel or Stainless Steel
End Cap Steel or Stainless Steel
Latch Bolt 100% Stainless Steel, dead locking type with an 11/16″ throw
Deadlocking Latch 100% Stainless Steel with 5/8″(16mm) throw
Strikes DH531 & DH532 Rim (panic rated)
DH533 Rim (fire rated)
Handing Non-handed
Mounting Fasteners Machine screws furnished standard Sex Nut & Bolt (SNB) are required for wood doors. Order SNB separately including standard.
Dogging* Hex key dogging standard (Allen-type key furnished)
Dogging Options Cylinder dogging or less dogging
Finish 605, 630, 689, 690, four finishes
Dimension See Spec. Sheet
Device Length See Spec. Sheet
UL Listed For Panic Hardware, see model DH500SA. For Fire Exit Hardware, see model DH510AF

*Fire rated SJR device has no mechanical dogging. (Dogging device is not permitted on fire-rated exit device)
