Heavy Duty Commercial Door Closer | Grade 1
18S1-6 (Slim Cover) | Grade 1 | Closer
- UL and CUL listed; UL and 10C fire rated
- Factory tested to meet or exceed ANSI A 156.4 Grade 1
- ADA compliant
- Fixed spring power size 1 to 6; Fixed spring optional
- Cast aluminum body, forged steel arm
- Standard sweep and latching speed
- Standard adjustable backcheck
- Standard tri-packed for regular arm, top jamb and parallel arm application
- Standard self taping and drilling screws
- Plastic cover
- Lifetime warranty
Finishes:
- AL (Alum) & DU (Duro)
Optional Features:
- Delayed Action
- Drop Plate
- Hold Open Arm
| DOOR HARDWARE DOOR CLOSERS 18CI-1-6BC CROSS REFERENCES | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| DH | CORBIN | DORMA | DORO-O-MATIC | HAGER | LCN | NORTON | RUSSWIN | SARGENT | YALE |
| 18CI-1-6BC | DC3200 x M76 | 8600 | SC80 | 5200SLC | 1460-72 | 8310 | 9000 | 1430 | 3301 |

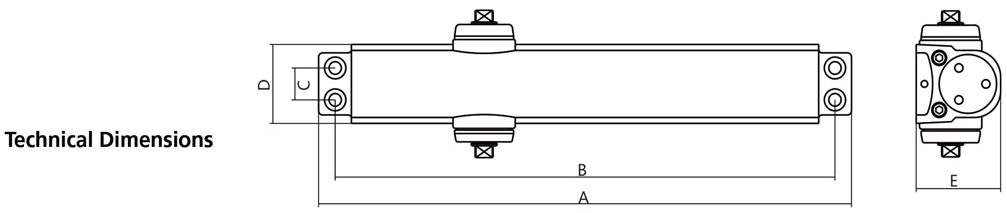

| DESCRIPTION | DIMENSIONS | DESCRIPTION | DIMENSIONS |
|---|---|---|---|
| A. Length of Closer Body | 12-3/4″ (248 mm) | D. Closer Body Height | 1-7/8′ (45mm) |
| B. Horizontal Mounting Holes | 12″ (304.8 mm) | E. Projection from Door | 2-1/32 ” (51.5mm) |
| C. Vertical Mounting Holes | 3/4″ (19 mm) |
