DEADBOLTS

DH77700 Series / ANSI Grade 1 / Deadbolts

A Heavy Duty commercial quality deadbolt that provides a maximum deterrent to forced entry. The cylinder recesses into the door to resist blows attempting to move the lock.

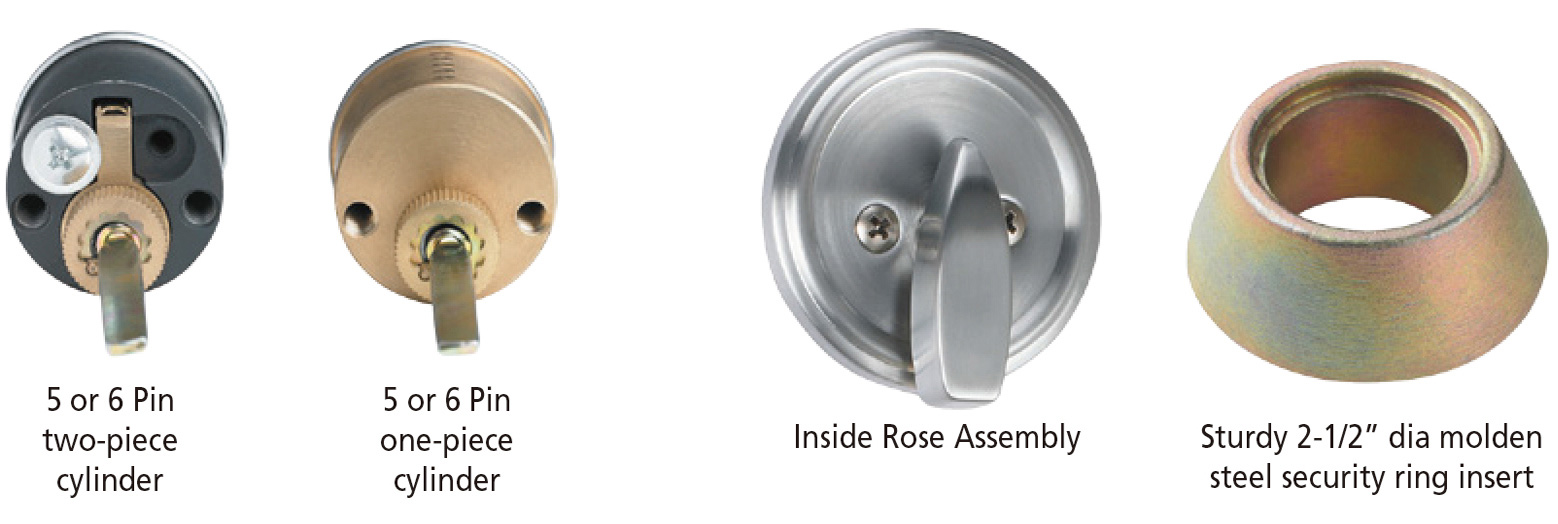

  • 2-1/2" dia solid steel one-piece design security ring insert. exceeds ANSI Grade 1 security against hammer and crowbar prying attacks.
  • 1" (25mm) deadbolt with hardened steel core exceeds ANSI Grade 1 Security against kick-in and saw attacks.
  • High precision pick resistant solid brass 6 pin tumbler plug "C". Brass key Meets ANSI Grade 1 Security to prevent key cylinder from being knocked out.
  • Drive in deadbolt – Designed to be installed on metal door conveniently. Only one hole is needed on door edge.
  • ADA Ergonomic thumb turn.
  • Extra thick steel mounting plate
  • Sturdy, all steel latch case and mechanism.

Finishes Available:

  • PB – Polished Brass
  • SB – Satin Brass
  • AB – Antique Brass
  • AC – Antique Copper
  • SN – Satin Nickel
  • SC – Satin Chrome
  • CR – Polished Chrome
  • ORB – Oil Rubbed Bronze
  • TB – Black Nickel
  • AN – Antique Nickel
  • PVD – Lifetime Finish
Door Prep: Cross bore 2-1/8″, Edge bore 1″ Latch face 1″x 2-1/4″ .
Backset: 2-3/4″ standard, 2-3/8″ optional.
Door Thickness: Adjustable 1-3/8″ — 2″.
Cylinder: 5-Pin or 6-Pin removable core. Schlage “C ” keyway or Kwikset and other options available.
Face Plates 1″x2-1/4″ square corner standard. Round corner and other options available.
Strikes: 1-1/8″x2-3/4″ square corner standard. Round corner and other options available.
Bolt: 1″ throw. Nickel plated.
ANSI/BHMA: A156.5 Grade 1.
